How to Add Text Layer in Custom Product Designer for Magento 2

Our Extension allows users to buy any Designer product and design the Print on that product by adding any text, Clipart, or any image on the product and it is very easy to use by simply click on actions. The Design which the user designs on the Image would go to Order and the admin can then see that design to print the Product. Users can Add and Edit the Text layer anytime on the product while designing.

1 web to print

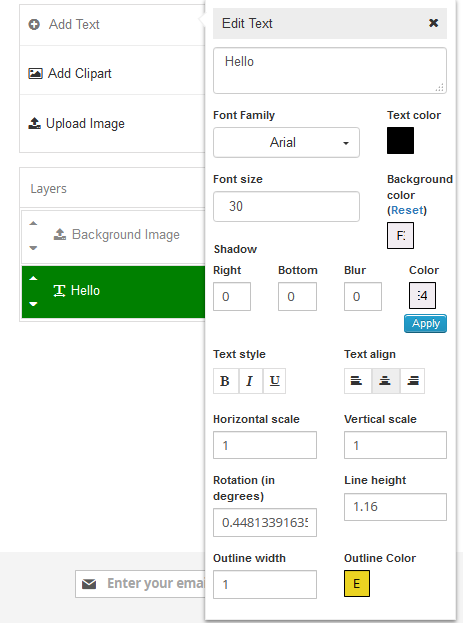

Firstly to design the product go to the Product page of the Designer product and Click on Customize the design button in our Purpletree custom product designer for Magento 2. Then Click on Add text on the right side and a new small Popup will open with Default text as Hello on the Design area. Now in the Edit Text Popup, there are the following options that can be chosen by the customer

Text Area - In here enter the text which will be shown in the Design area. It could be in any language as in the end admin would get the design as an image only. Default Text is Hello, but you can change it.

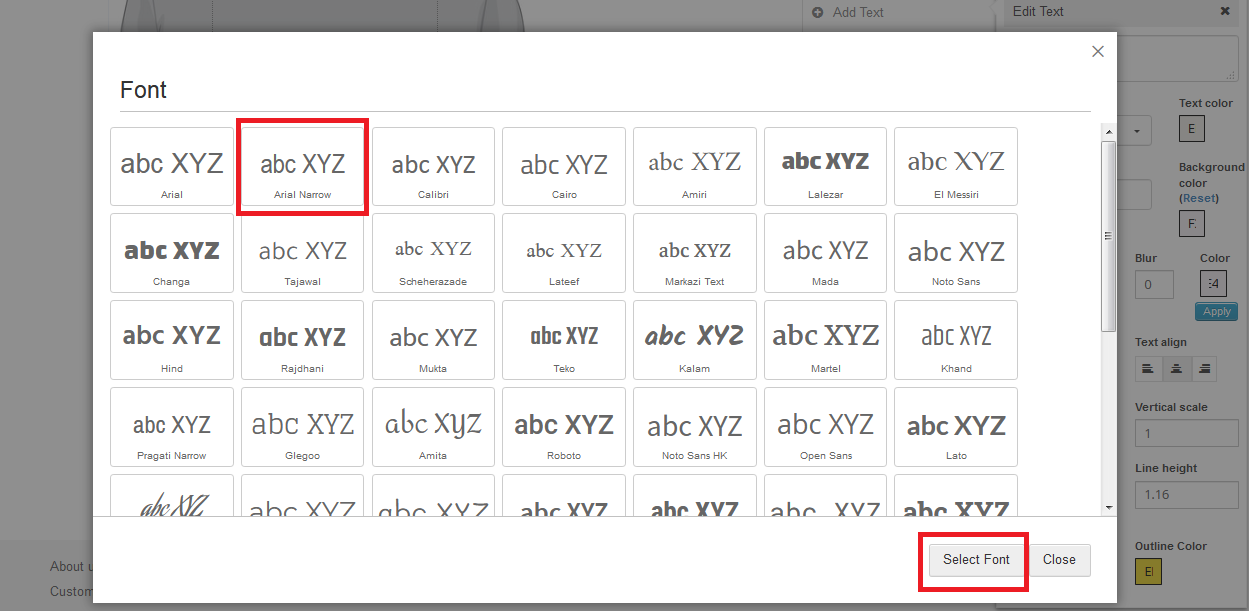

Font Family - We have added some popular predefined Font Families in our Extension, click on the Font name, and Popup will open, from there choose the font by Double Click or Select and click on the Select Font button in the bottom right. Default is set to Arial font.

2 web to print

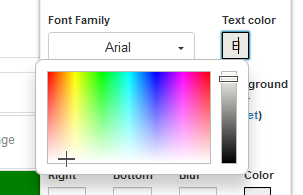

Text Color - From here choose the font color, Color picker will open on click of it so choose as per your design. By default, it would be Black in color.

 web print

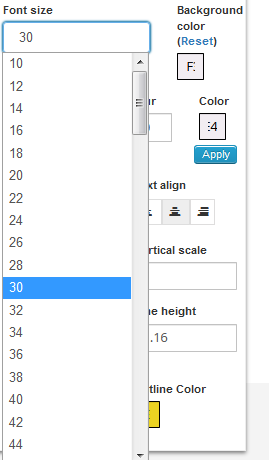

Font Size - Choose the Font Size from the dropdown, we have added Font Sizes from 10 Pixels to 198 Pixels. Choose as per your design. Default is set to 30.

4 web to print

Background Color – choose the Background Color for the text. By default, there is no Background color set for the Text.

Shadow - Chose Shadow Right, Bottom, and Blur, Enter numeric Values for these, then Choose Color for shadow. To apply shadow you must click Apply button under Shadow Color.

5 web to print

Text Style – Choose style as Bold, Italic, and Underline.  You can choose all or anyone. By Default, all would be disabled for text.

Text Align - This would only work if there is more than 1 line in a single text Layer. Select from Text Align Left, Align Center, or Align right buttons. This will align text within the text layer and not in the whole Canvas Area.

Horizontal Scale - Enter a numeric value to stretch the text layer horizontally. This can also be achieved by from mouse with Drag from Left or right.

6 web to print

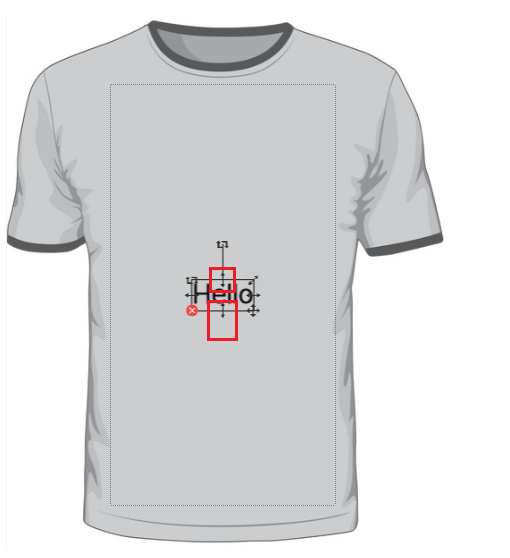

Vertical Scale - To vertically scale the text layer enter a numeric value here, You can also use the mouse to Drag vertically in a text layer.

7 theme

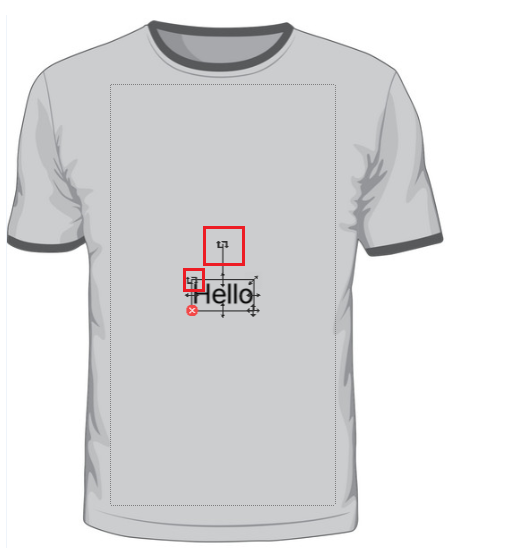

Rotation (in degrees) - Enter a numeric value to rotate the text layer up to 360 Degree. This can also be done using Mouse Dragon Text Layer Left Top corner or Icon on top of the Text layer.

8 web to print

Line Height - To set Line Height for text if it is of more than 1 line in a single text layer. Enter Numeric value in here.

Outline width – To set outline on Text written in Textarea. Default is 0. Enter Numeric value in here.

Outline Color – Set the Color for Outline width set from Color Picker.
